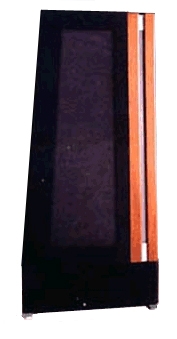

Detailed Info about the Apogee Studio Ribbon Array
I can find precious little about this model. f you have more pictures, please let me know!
Official Info
The Studio Ribbon Array was effectively a replacement for the Duetta Signature which was discontinued in around 1992. It is very similar in size to the Duetta Signature, but with a (non subwoofer) base section containing the crossover, raising the ribbons off the floor. The base section was omitted when bought in conjunction with the matching subwoofers, as the Studio Grand.
Specifications
1992-?
Original Retail $8000
Height 170 cm
Width 71 cm
Impedance 3.25 – 4 ohms
Bass driver
Aluminium/Mylar panel (etched)
Midrange/Tweeter
Aluminium/Kapton panel (etched)
Frequency response
30Hz (-3dB) to over 25kHz
Crossover frequencies
~1kHz
Suggested amp power
100W (into 8 ohms) 200W (into 4 ohms) with ±16amps current
Weight
95lbs (45kg)
Finishes available
Black Sand, Oak, Mahogany or Black Hi-Gloss finish
