JRDG Company Special – Concerto MM/MC Phono Modules

Available around 2007

Retail Price in Germany in 2007 818 euro

Compatible with Concerto preamp and Concerto integrated amp and likely also compatible with the Concentra integrated amp.

rowland-concerto-preamp-front_550pix

PHONO CARD ADJUSTMENTS

If the Phono Card option has been factory installed, so that Input 2 on the rear of the CONCERTO is dedicated for phono operation only, the following adjustments can be made to optimize the performance of a particular phono cartridge. These adjustments include both cartridge loading and overall phono amplifier gain.

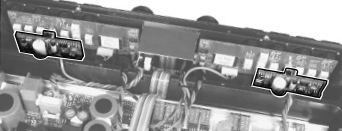

rowland-concerto-phono-boards-instructions_1-342pix  rowland-concerto-phono-boards-instructions_2-155pix

STEP 1:
Unplug the CONCERTO power cable from the wall AC outlet.

STEP 2:
Place the unit upside-down on a soft, clean surface. Using a #2 Phillips screwdriver, remove the twelve screws that secure the bottom cover of the unit.

STEP 3:
Carefully remove the phono card from the back panel by easing it gently back and forth until it separates from the unit.

STEP 4:

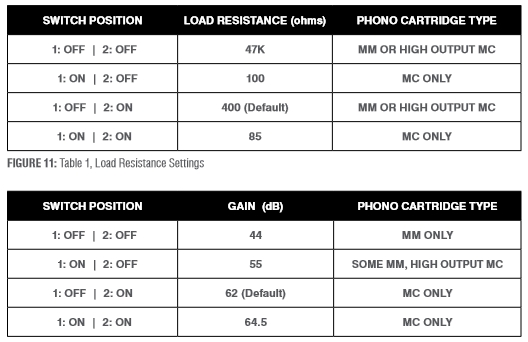

Locate the LOAD and GAIN switches on the phono card. (See FIGURE 10) Adjust the Load Resistance and Gain settings on the plug-in Phono Card.

STEP 5:
Replace the bottom cover. Using a #2 Phillips screwdriver, reinstall the twelve screws that secure the bottom cover.

rowland-concerto-phono-boards-instructions_3-279pix      rowland-concerto-phono-boards-instructions_5-266pix

rowland-concerto-phono-boards-instructions_4-528pix
