Antipodes EX Music Server

Review sample supplied by Antipodes Audio
Retail price in the Netherlands incl 21% VAT: 4650 euro

With its ODAPS2 power supply, four separate shielded chambers, and user-installable storage, the relatively affordable EX server marks the start of a new Antipodes range. When using the EX by itself, both server and renderer apps run on the same device. The EX enclosure has a similar build as the DX and consists of very thick aluminum panels screwed together very sturdily. Because there are no fans, the machine is whisper-quiet, nicely heavy and feels incredibly solid. Interestingly, the EX is the Antipodes entry-level music server but at the same time, its rendering capabilities are considered to represent the company’s best solution!

Although The EX works sublimely just by itself, it can also be teamed with the CX to form the top-tier CX-EX combination. In this configuration, the CX is a high-power device running only the server app and the EX is a lower power, purist device, running only the renderer app.

The EX has already started shipping and the CX will follow soon. At the time of writing, the EX has been received for review but not yet the CX. So, I’ll start with the EX and add a follow-up review when the CX has also been received.

Technical

What you should know first and foremost is that all Antipodes servers can be set to function in various capacities, such as Roon Server, RoonReady renderer, Squeezebox (including UPnP server), MPD renderer and HQPlayer NAA. There is a lot more, and I mean A LOT more to write about the technical side of this server, but much of this is the same as for the DX or DS servers that I reviewed earlier. So, for a full description of all the technicalities and possibilities, and a wealth of screenshots, please refer to the earlier reviews.

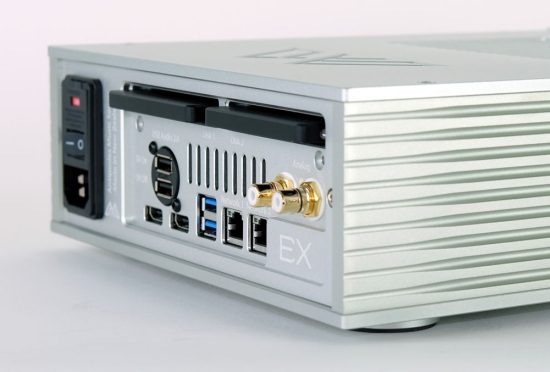

The most notable differences from the earlier DS and DX servers are that the EX uses user-installable storage, has a new ODAPS2 power supply, two, rather than one, Ethernet ports and no integrated CD ripper.

The user can very easily install up to 4TB of HDD or up to 8TB of SSD storage, without having to open the enclosure. The drives simply click into place using rear panel slots.

Antipodes are all about reducing noise, but only in manners that are not detrimental to the sound. The new ODAPS2 supply reduces high-frequency noise without resorting to filtering that would impede the speed of current delivery. Any USB ripper can be used, but Antipodes also have a separate external CD ripper in their portfolio, the P1, which has the same footprint as the EX.

As mentioned, the EX has two Ethernet ports. One can be used to connect to the network and the second to provide a low-noise dedicated feed to an Ethernet DAC. According to the manufacturer, “Ethernet can introduce high levels of noise into the receiving device. The Direct Ethernet solution in Antipodes servers minimizes network ‘chatter’ on the link and creates a high bandwidth, phase accurate, low-noise direct link between the server and renderer. This provides a dramatic improvement over connecting your server and renderer devices through a noisy switch or over a long length of network cable”. I’ve put this to the test and indeed, the direct connection sounds considerably cleaner as well as freer than a connection via the existing network.

When using Roon on the EX and streaming via Ethernet, the destination device must of course also support Roon. When using USB, any USB DAC will work. Alternatively, when using UPnP as part of the Squeezebox emulation, virtually all network endpoints are supported. This opens up a whole new can of worms, but the manufacturer has gone to great lengths on the Antipodes website to describe all the possibilities in detail, with easy to follow step by step solutions.

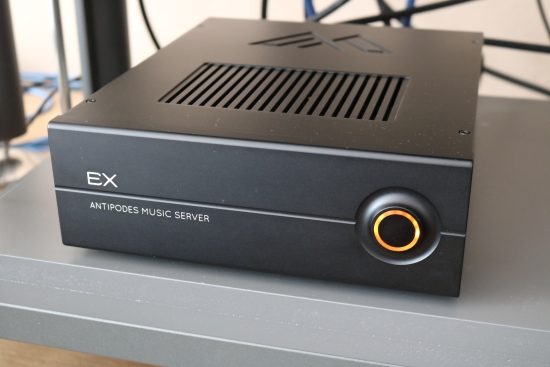

The orange ring around the power switch indicates that the unit is in standby

Sound Options

Just like with the earlier designs, the EX allows the user to run the server in several operational modes and several audio output modes, and they all result in a slightly different sound, allowing the tailoring of sound precisely as needed. While this may sound complicated, the excellent user interface makes it really very easy to change these settings. For the complete overview of modes and output settings, please check the earlier DX or DS reviews.

In short: the EX when running Roon can use two output modes: Roon Ready or Core Direct. These are just two of the modes that can be selected using the Settings – Audio tab on the Roon user interface. Both outputs can be enabled at the same time, and if you like, you can enable many more but Antipodes states that it is best to activate as few outputs as you need for The best sound quality. For these tests, I enabled only Roon Ready and Core Direct. Once enabled, you can quickly switch between them using the Transfer Zone popup window.

Contrary to earlier observations with the DS and the DX (and a very different audio system), of these two modes, Core Direct sounds more free-flowing and relaxed and Roon Ready tighter and more articulate. This difference really is a matter of taste and is subject to system synergy. I currently prefer Roon Ready but I’d suggest just trying it for yourself and using whichever sounds best to you.

Update 05-08-2019

As I now found out having used various Antipodes servers as well as the combination of CX+EX, the difference between RoonReady and Core Direct depends on where the Roon Server and RoonReady applications run.

• In a single Antipodes device scenario (DX, DS, EX) where Roon Server runs the server functions and the same chassis and hardware is also used for RoonReady as the Renderer for USB output, Core Direct sounds tighter and RoonReady sounds softer.
• In a combo scenario (CX + EX) where Roon Server runs on one device and RoonReady runs on the other, the situation is reversed for the Renderer machine. In this case, RoonReady sounds tighter and Core Direct softer on the Renderer machine (EX). With this same combo, the reverse is true for the CX, Core Direct sounding tighter and RoonReady sounding softer, which is again exactly the same as for the DX, DS, and EX when they are used on their own.

So, I’m conjuring up the following but as I try to apply logic to my findings above, basically, it looks like Core Direct is the most direct when the server is on the same machine as RoonReady. For a duo setup and on the Renderer machine, however, it looks like RoonReady is the most direct path and Core Direct somehow creates an extra step.

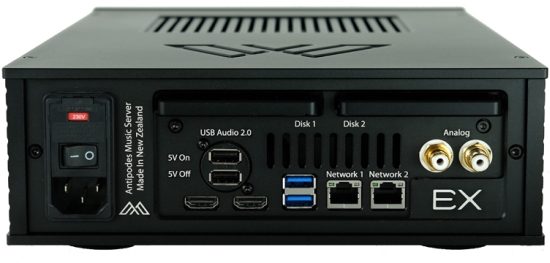

USB outputs

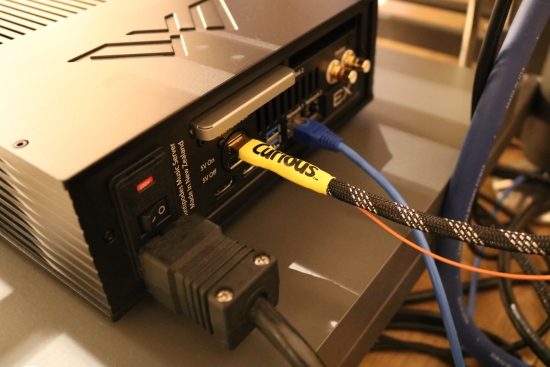

There are two sets of USB outputs on the back and although the website states that “each of the four ports is independently derived so they do not interfere with each other, and each of them receives exactly the same quality of the digital audio signal”, the manual states that the 2.0 outputs lead to the best audio quality. Antipodes also state that one or the other may sound better, depending on the combination.

I just tried it for myself and found notable differences. All the outputs sound solid and powerful but I found that the two blue connectors sound less a bit congested and spatially restrained while the two ports in the round connector labeled “USB Audio 2.0” of which I used the top one with 5v power, sound most airy, spacious and free-flowing while maintaining pacing and articulation. I prefer the latter and would encourage the user to just try it and stick with whatever sounds best.

The phase of the power plug turned out to make a marked difference too: one way around the EX sounded tighter, cleaner and more direct (but less relaxed) and the other way around the EX sounded more sonorous and timbrally richer (and more relaxed). This is another thing to just try for yourself.

The main speakers used for this review are the Wilson Watt/Puppy 8.

Listening

Starting with a USB connection, like the other Antipodes machines, the EX already sounds truly great even when used only as a Roon endpoint streaming from my regular Windows PC running the Roon Core application in the other room and it only gets better when using the EX as an integrated server.

After having been stunned by the DX in terms of bass definition and overall impact, I was hoping to hear the same attributes in the new EX and indeed I did but now more balanced and with further enhanced refinement and fluidity. I don’t have the earlier servers at hand to compare directly but I can say with confidence that the EX surpasses the DS comfortably. It has all the more affordable server’s articulate behavior and dynamic contrast yet none of its dryness and with a much fuller tonality. In fact, I’d say that the EX is easily as dynamic and lively and at the very least comes very close to the DX in terms of bass power, texture richness and color saturation.

In addition to the above qualities, there is simply zero hash, zip, zing or other forms of harshness or brightness. More importantly, the EX is as finely resolved as the best servers and endpoints that I have heard. More specifically, it’s every bit as refined, focused and “hi-res” in presentation as the Aurender N10 was, but with a fuller, tonally richer and more clearly textured sound and a superbly lyrical behavior. The new sound is technically sublime yet also fully organic – a very difficult combination to achieve.

I also used the EX as the main source for my review of the Zanden 8120 amp and Kroma Audio Carmen speakers. The EX is on the right bottom shelf.

When speaking with Antipodes CEO Mark Jenkins about this change in sound, he informed me that with the early models they tended to concentrate a lot on tonality and organic heft, alongside resolution and other audiophile parameters, but they realized that it is more important to focus on the emotion. This led to experiments to see what is typically robbing digital of its ability to convey the emotion in the music, particularly compared to high-quality vinyl front ends. They found that the most important thing to do was remove all filtering and allow very wide bandwidth, and that led to the DS and DX models that I reviewed earlier. These Antipodes servers had real musical life, but to some listeners and in some systems they could be a touch thin (DS) or a little rough (DX2). This quality may work in some systems but not so much in others, but it evidently worked very well in my then Apogee Diva + Jeff Rowland system.

With the new DX3, EX, and CX, Antipodes significantly improved the signal handling and power supply technology, looking for that perfect balance of sound that is fast and clean and at the same time relaxed. The ability to convey the emotion in the music is the top priority, and this was certainly evident from my listening tests.

The EX also has an analog audio output. As the website states, this was not an attempt to include a high-quality DAC but an inexpensive way to reveal the benefits of getting the digital part right. The analog outputs sound fine, actually. Not hugely revealing and not incredibly expressive but otherwise pretty good. I’d say that it’s on par with a mid-class CD player.

Not having the CX at hand just yet, I don’t have full options for assessing the direct ethernet connection, but fortunately, I also have a CH Precision C1 DAC at hand, which contains a UPnP input, as well as a USB input.

Comparisons

The Melco N1A/2 admittedly doesn’t sound its best when used via USB and indeed it sounds quite a bit thinner and tonally less rich into the C1’s USB input than the Antipodes EX. The more expensive Melco N1ZH/2 connected via USB sounds a lot fuller in the bass than its more affordable brother and is richer in the midrange, with increased focus and spaciousness but still, it sounds a bit stale compared to the EX.

Granted, the Melco’s only come into their own when streaming via a UPnP network connection to a network-capable DAC. This way, both servers actually sound very organic and free-flowing. The N1ZH is my reference for best sound when combined with the CH Precision C1 DAC and playing via the dedicated ethernet connection. I’ve conducted several direct comparisons using both the Melco and the Antipodes servers in parallel, feeding the C1 via network and USB respectively and I have to say that the difference is very small, very small indeed. The tonal balance, the refinement, texture, and richness are all the same, as are PRaT, speed, and dynamics. The only area in which the Melco still differentiates itself is in terms of free-flowing soundstaging. In some systems, this can make the difference that makes for the elusive suspension of disbelief, in other systems, the difference may not be all that relevant. My current system, using the CH Precision A1 amp and Wilson speakers, falls in the former category.

Aqua Formula xHD

Used with the Aqua Formula xHD DAC, via USB, into the Jeff Rowland Corus preamp, bypassing the C1, the Antipodes EX presented the music with a very even balance between weight/full tonality and transparency/neutrality. Either of the Melcos, by comparison, sounded a little dry and just a little too clean with the Aqua, especially in the bass and midrange. Clearly, the EX combines very well with the Aqua DAC.

UPnP versus USB

As Roon does not support UPnP and the CH Precision C1 does not support Roon, my only option to allow comparisons between USB and direct ethernet connection with these components was to use UPnP. This would turn out to be a very interesting comparison.

USB provided the familiar balance of tight control, high transparency, and excellent low-level detail. Used this way, the presentation is familiar but still smoother, richer and more refined than most other servers or streaming endpoints that were used with the C1 via USB. The C1 adds another perspective by offering the choice between USB Class 1 and Class 2. Class 1 is limited to 96kHz but sounds very noticeably tighter and more articulate. Class 2 sound freer, smoother and more fluid, but is also slower in pace and a little blurry in the bass. I preferred Class 1.

When switching to direct ethernet, an interesting thing happens: the sound becomes seemingly more coherent and at the same time more free-flowing. It’s difficult to put into effectively descriptive words, but probably best described as being subjectively more involving, letting the music speak for itself more freely. Going back to USB now made for a comparatively more restrained sound, as if the signal was somehow more processed. Listen longer, though, and you get used to the USB signature again.

As always, your mileage may vary, but I find it very useful to have the option to choose between these two connection methods. As Antipodes also indicates on the website, the end result is dependent on the implementation and I would add to this that user preference and system synergy also play a role. When the CX arrives, this will no doubt make for other interesting results and potentially even more options for tuning the sound precisely as preferred. I, for one, can’t wait!

Conclusion

The Antipodes EX has a powerful, dynamic delivery with full tonality and very realistic textures. In addition, it has a smooth and refined delivery, with zero hash, zip, zing or other forms of harshness or brightness. In fact, the EX is probably as dynamic as the DX2 and at the same time as finely resolved as the very best servers and endpoints that I have heard. More specifically, it’s almost as refined, focused, and “hi-res” in presentation as the Aurender N10, but with a fuller, tonally more textured, and more impactful sound. It has great PRaT but also lets the music breathe and flow freely and it has superb lyrical capabilities.

Update July 2021 – OLADRA upgrade

The OLADRA upgrade is now available for CX and EX models until August 2021 and while parts stocks last.
