801 D4 Signature – Technical Aspects
The new models enhance the already exceptional performance and aesthetic benchmarks of the models on which they are based. Careful component upgrades and luxurious, beautiful new finishes have been added. The new 801 D4 Signature represents the pinnacle of current Bowers & Wilkins thinking and design and can therefore be regarded as the new flagship of Bowers & Wilkins loudspeakers.
The 801 D4 Signature is based on Bowers & Wilkins’ Diamond Dome tweeter and Continuum™ ConeFST™ center driver with the addition of powerful dual 250mm (10″) Aerofoil Cone bass drivers with upgraded and improved magnets for the motor systems.

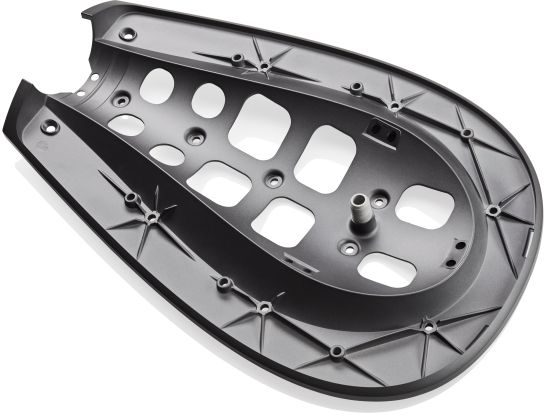

The Signature 801 D4 also features a radically improved aluminum top plate supporting the Turbine Head midrange enclosure. This new design with its new optimized skeletal structure contains machined-out holes, strategically positioned to change the resonant frequency of the aluminum to minimize unwanted resonance. We were allowed to handle a normal top plate and then one for the signature series and indeed, the latter is very noticeably quieter.

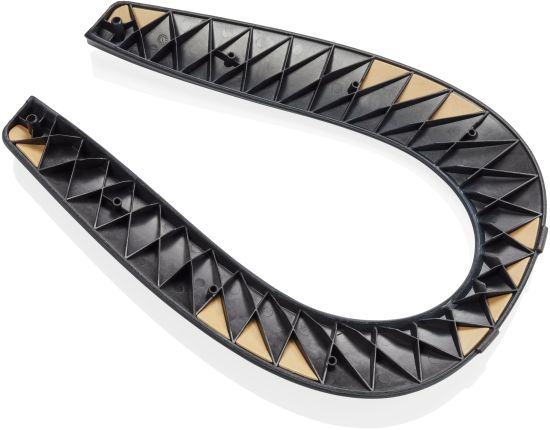

The aluminum top plate of the 801 Signature is paired with a new design of leather-trimmed plastic ‘collar’ that slots into the aluminum top plate. This collar contains strategically positioned wedges of Techsound damping material, as is used elsewhere in the 801 D4 structure, for example, inside the Turbine Head, and in the plinth. This results in even lower mechanical noise and as a result, a less audible cabinet contribution effect.

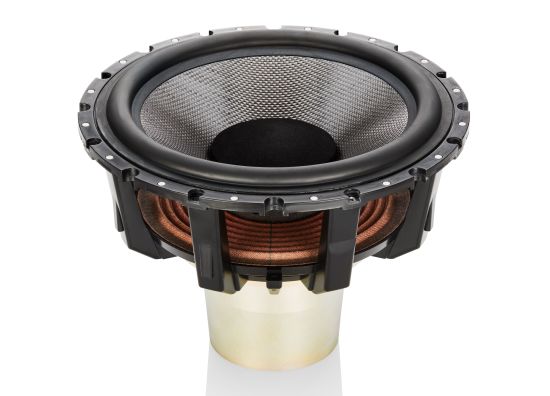

The 25cm (10in) low-frequency unit has been re-engineered with an upgraded steel specification in the top-plate and mid-plate which lowers inductance and leads to lower current distortion.
The 801 D4 bass port output is a substantial aperture in the cabinet. In the standard model, the area around this hole is braced with an aluminum baseplate to restore lost stiffness. This follows the same logic as the aluminum plates inserted into the baffle around the drive unit apertures at the front of the cabinet.

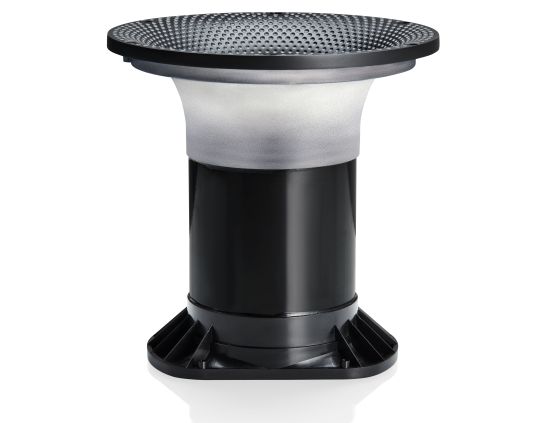

The 801 D4 Signature goes one step further by upgrading the port output itself. In a standard model, the Flowport flare is plastic: in the 801 Signature, it is replaced with cast aluminum to make it stiffer and quieter, and less susceptible to unwanted port noise.

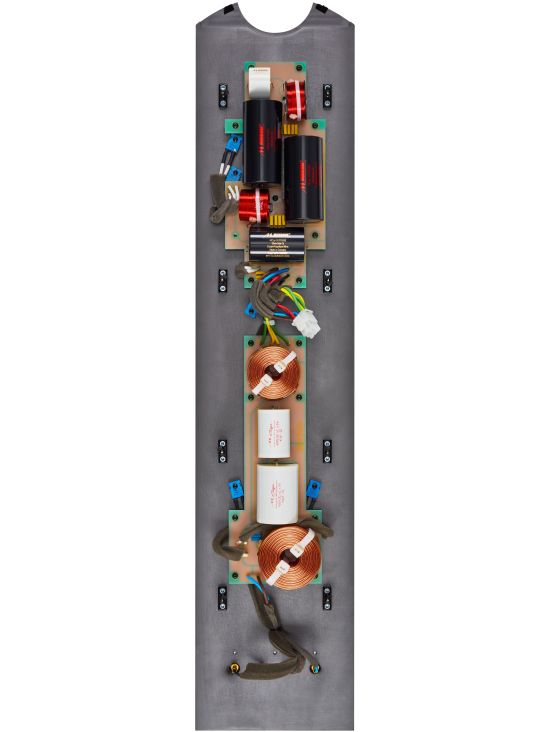

As with previous Signature models, the 801 D4 Signature’s crossover has been carefully upgraded with new and upgraded Bypass Capacitors (identifiable by their yellow finish). These are also doubled up in quantity across the boards.

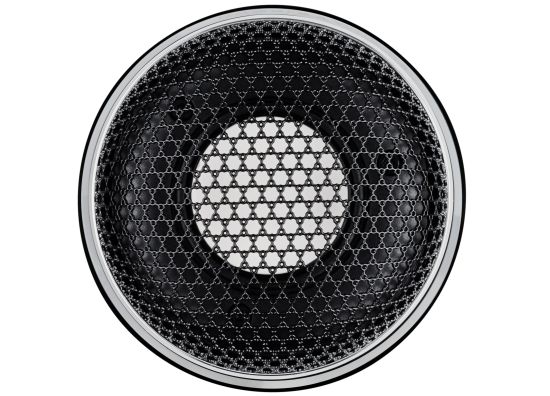

Finally, the 801 D4 Signature introduces a new tweeter grille mesh design. The new design is more open than ever. The orientation of the structure is specific and engineered to ensure the best results. Reportedly, there were over 25 iterations in the development process before the engineers eventually settled on this new design!
I handled a mesh sample that was available and can confirm that the “holes” are now indeed larger while the structure is still extremely stiff. I would not expect anyone to damage their tweeters even if they tried.

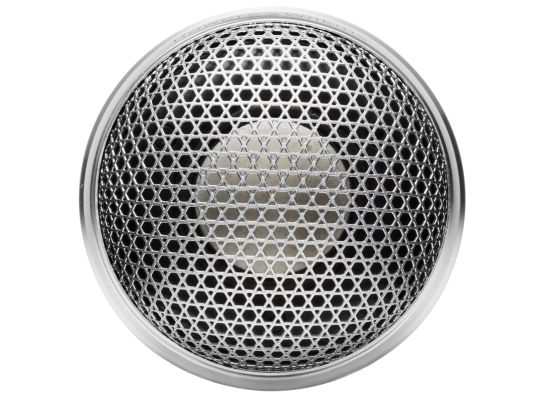

Above: standard 801 D4 model tweeter mesh; Below: Signature 801 D4 model tweeter mesh.
Exclusive to the Signature series
Please note that none of these improvements will be made available for ‘retrofit’ to current products, nor will they be incorporated as a running change into existing 800 Series Diamond products. This ensures that the Signature series remains unique.
Next: 801 D4 Signature – Listening
