D3
After launching the second incarnation of the D series, the D2, in 2015, Bowers & Wilkins surprised everyone by introducing the D3 range with its “inverted” rear-side-front cabinet. At first, the new design took some getting used to but soon it made the old design look, well old.
While my experience with the aforementioned dipole panel speakers had made me aware of the coloration that was still present in the old 804’s, my first acquaintance with the new D3 series made it immediately clear that the radical new design also marked a huge sonic change, substituting the brand’s traditional warmth and fullness by an unprecedented level of neutrality and resolution.
Bowers & Wilkins loudspeakers have always offered superb value for money but all of a sudden, the new models now challenged established ultra-high-precision brands such as Magico and YG acoustics in important areas such as resolution, refinement, and lack of coloration. However, while the D3 series speakers were certainly ground-breakingly transparent and revealing, in all the demos that I attended, they also sounded a little too clean and analytical for my taste. For me, it was as though technical perfection had taken precedence over the emotional aspects of the music.
D4

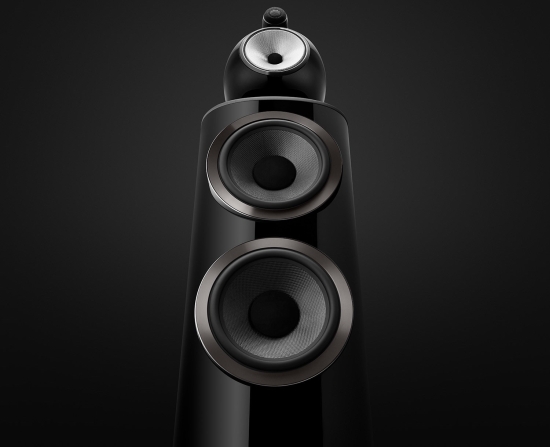

The new 801 D4 is the successor to the 800D3 and with this one of the most iconic model names returns to the portfolio. The 801 D4 is the top model of the series and the new reference by which all other Bowers & Wilkins speakers are judged.

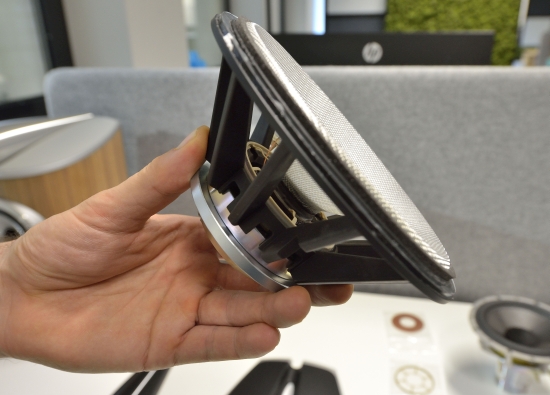

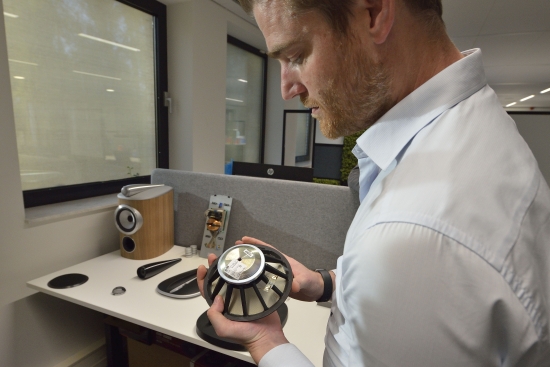

Above and below, Johan Katgert is showing us what the new Biomimetic Suspension looks like up close (By Werner Ero Fotografie)

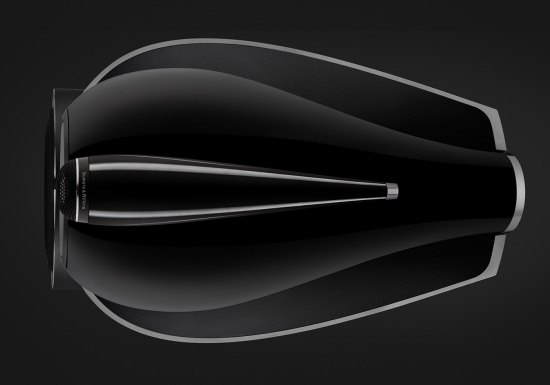

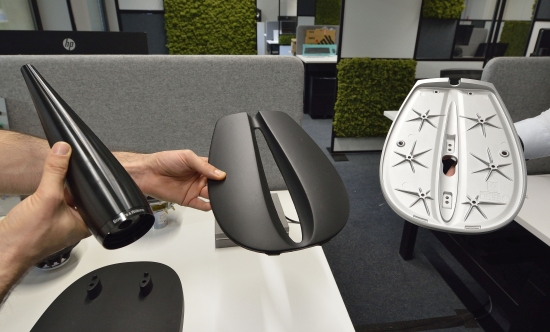

Nico Bierhoff and Johan Katgert provide a great look at the top and bottom of the new aluminum top panels (By Werner Ero Fotografie)

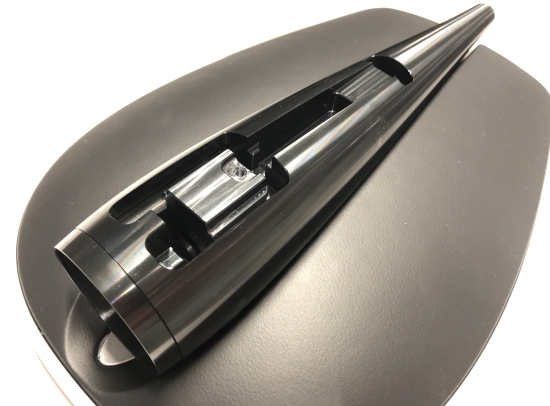

The 801 D4 is equipped with all the new technology that the 800 Series Diamond has to offer such as the considerably heavier and more solid tweeter housing that is milled from a big bar of aluminum and the aluminum Turbine Head with the Continuum driver for the midrange.

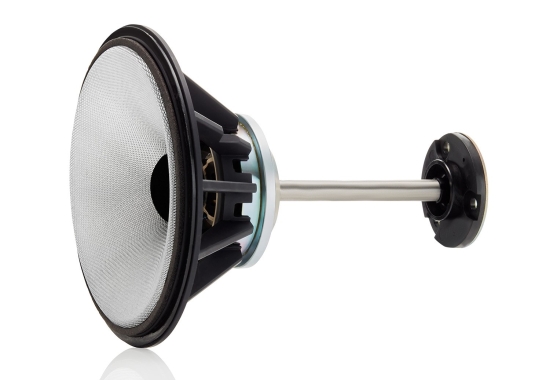

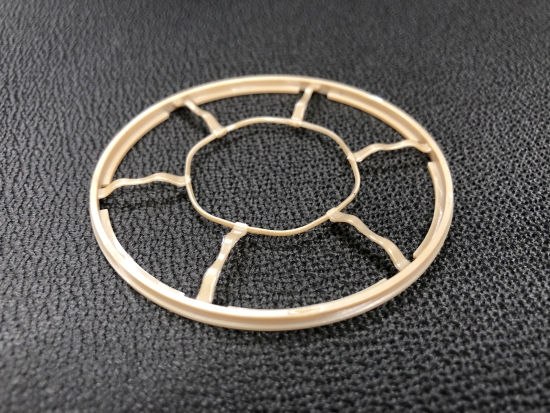

The new Continuum driver is now equipped with Biomimetic Suspension (see photo above), which means that the traditional woven spider at the back of the cone has been replaced by a kind of plastic frame with the minimum amount of material to prevent backward reflections from interfering.

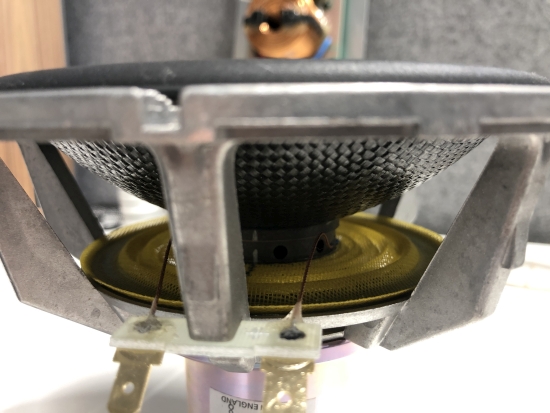

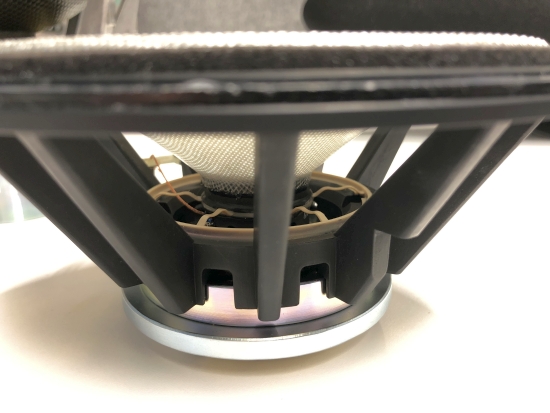

Above: Regular Woven Fabric Spider as used in a woofer; Below: new Biomimetic Suspension as used in the Continuum midrange driver.

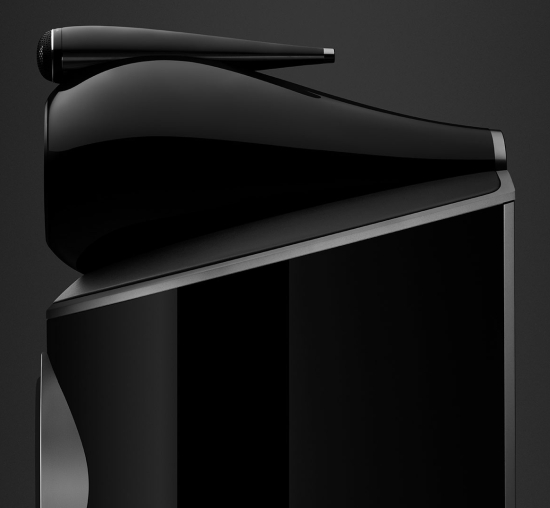

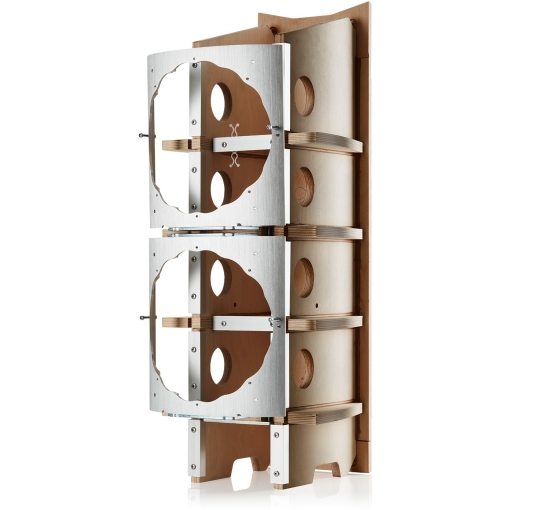

In addition, there is now a milled aluminum top panel, crossovers that are mounted on a rigid aluminum heatsink on the rear of the speaker, and a greatly improved Matrix housing, equipped with aluminum-reinforced, interlocking panels. Importantly, wherever there are aluminum-wood intersections, the parts are glued as well as screwed in place.
After the D4 range was released, it didn’t take long for rave reports to come my way. The new model was said to be not only the best incarnation of the series but actually the best that Bowers & Wilkins has issued. Of course, this is more often said with the introduction of a new reference series, so I took the news with a few grains of salt. When good friend and fellow reviewer Werner Ero then told me that the D4 did indeed provide all the benefits of the D3 series, along with key aspects that made the D2 series so great, that’s when I really took note.
Next: arranging the review and system setup
