Denon DP-3000NE Direct-Drive Turntable with DL-103, DL-103R, and DL-A110 Cartridges

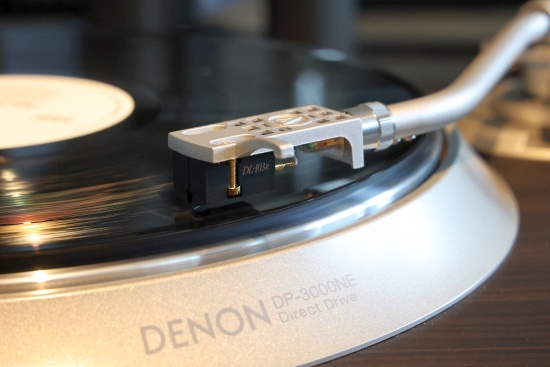

DL-103R
The DL-103R is a recent higher-end version of the DL-103. The basis is the same: same body, stylus, cantilever, and suspension, but different copper for its coils and slightly different specs.

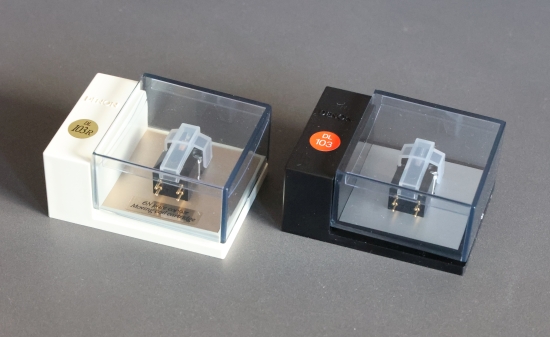

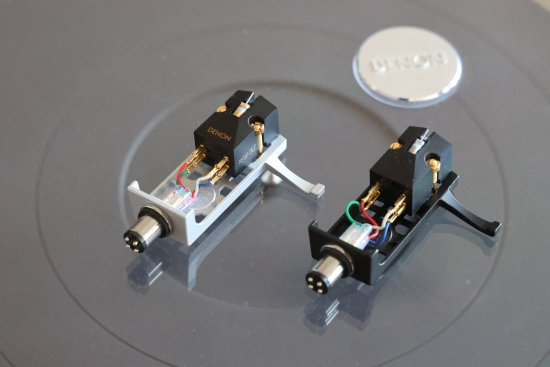

DL-103R and DL-103
The main difference between the two cartridges is that the R version’s coils are wound from 6 Nines pure copper wire instead of normal copper wire. To mark the difference visually, the R version has a gold vertical line on its front, gold lettering on its sides and bottom, and a gold-colored polepiece.
Denon DL-103 Phono Cartridge Specifications
– Type: Moving coil
– Output voltage: 0.3mV
– Frequency response: 20Hz-45kHz
– Output impedance: 40 ohms
– Channel balance @ 1kHz: < 1db
– Channel separation @ 1kHz: 25dB
– Stylus tip: 0.2 mm special round solid diamond
– Compliance: 5 x 10-6 cm/dyne
– Recommended tracking force: 2.5 +/- 0.3g
– Color: Black
– Weight: 8.5 g
– Recommended load resistance: 100 ohms or more
Denon DL-103R Phono Cartridge Specifications
– Type: Moving coil
– Output voltage: 0.25mV
– Frequency response: 20Hz-45kHz
– Output impedance: 14 ohms
– Channel balance @ 1kHz: < 1db
– Channel separation @ 1kHz: 25dB
– Stylus tip: 0.02 mm special round solid diamond
– Compliance: 5 x 10-6 cm/dyne
– Recommended tracking force: 2.5 +/- 0.3g
– Color: Black
– Weight: 8.5 g
– Recommended load resistance: 100 ohms or more
Denon markets the R version as their Flagship cartridge, which, given its conical stylus shape, seems to be at odds with the normally accepted stylus shape ranking. Denon also offers the DL-301 MkII, which has a technically more advanced Elliptical stylus. Yet, this cartridge is positioned (marketing-wise and price-wise) underneath the DL-103R. On the other hand, there is no denying the superb musicality obtained with the DL-103. So, how does the DL-103R compare?
The DL-103 has an inherently full-bodied and energetic delivery, and while I found it remarkably smooth, it can be a little direct or even a little edgy under certain circumstances, for instance, when used in the Technics or AT headshells and with the headshell connector collar screwed on very tightly.
Surprisingly, given that the stylus and cantilever are the same, the DL-103R sounds considerably more polished and refined. I wouldn’t say it unveils more details or has inherently higher resolution, but its treble is unquestionably airier and more liquid. In addition, its entire presentation is smoother and more sophisticated. Along with its newfound level of naturalness, it also loses a portion of the “raw directness” that I feel makes the standard 103 so appealing. The 103R is just as accurate but carries less weight in the bass and is dynamically more polite. Overall, I’m hard-pressed to pronounce a winner between these two cartridges. Ultimately, it depends on what one desires. In any event, despite their relatively low compliance, they both work really well with the DP-3000NE.
Detail versus musicality
Naturally, we want it all, or at least I certainly do. Ideally, the music should be detailed, dynamic, revealing, and neutral but also natural, rhythmically engaging, emotionally moving, and the list goes on. But oftentimes, especially within a given cost constraint, one cannot have it all, and one has to choose. In this case, it often comes down to resolution versus musicality. And in that case, one has to wonder if the extra resolution is worth the extra expense and effort. Does hearing deeper into the mix also translate to increased musical pleasure?
Interestingly, the DP-3000NE, when combined with the DL-103, has a way of consistently communicating the fun and energy of the recording in a way that seems to defy the audiophile requirements. That is, until you start comparing more exotic cartridges with more advanced stylus shapes. But so long as you do not make A-B comparisons and your vinyl is of good quality, you do not have the feeling of missing anything.
One thing to note is that a conical stylus is at a disadvantage when you play a lot of second-hand worn vinyl, whereas more exotic laser-cut stylus shapes can reach deeper into the still unscathed regions of the grooves.
The turntable always sounds well-balanced and pleasant, but with certain records, especially 45 RPM 12-inch versions (where the information in the grooves is more spread out), its performance scales up to a level that you simply do not expect. Over the last few weeks, I’ve encountered many records that sounded utterly infectious. In these cases, more high-end turntables could outperform it in certain aspects, but never in terms of communication and all-out fun.

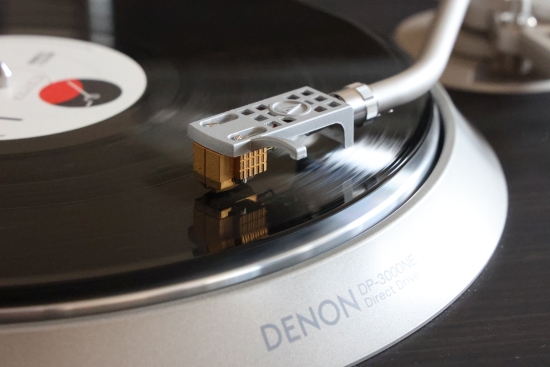

DL-304
The DL-304 is an old favorite that is no longer available, with an extra tiny 07 x 0.1mm “Special Elliptical” tip and an incredibly low output of only 0.18 mV. It has superb refinement and low-level resolution, almost on par with a MicroRidge or Fine Line, but it is very critical to set up and does not work quite as synergistically with just any tonearm or turntable.
But again, I was in for a surprise. Given my earlier experiences with the AT cartridges and knowing the DL-304 is quite finicky, I did not expect the DL-304 to perform well with this turntable and arm. But here I was, again, with my prejudices, being treated to a sound that belied my expectations. Not only did the DL-304 provide almost the levels of resolution and refinement as the AT cartridges did, but it did so while upholding what I am now beginning to consider a Denon house sound: a certain “whole-ness” that binds all the musical composition’s individual components together into a cohesive and highly pleasing musical performance. The turntable is very neutral but not clinical; it has an appealing naturalness to it, and the same goes for the three Denon cartridges. The sound is neutral yet also very natural and innately musical.
And once again, the unusual arm construction just seems to work, not necessarily by unveiling the utmost in resolution and precision but by consistently providing the essence of what is in the recordings in an unfailingly upbeat, lyrical, and energetic manner.
Compared to the DL-103 and DL-103R, however, the DL-304 has a very low output and a gentler, more sophisticated, and more nurtured sound. It is considerably more refined and certainly musically pleasing but not as robust, dynamic, or rhythmically engaging as the 103s.
In a nutshell, the DL-304 is contemplative, intimate, and caressing, whereas the DL-103R and especially the DL-103 are ballsy, outgoing and festive.
Conclusion

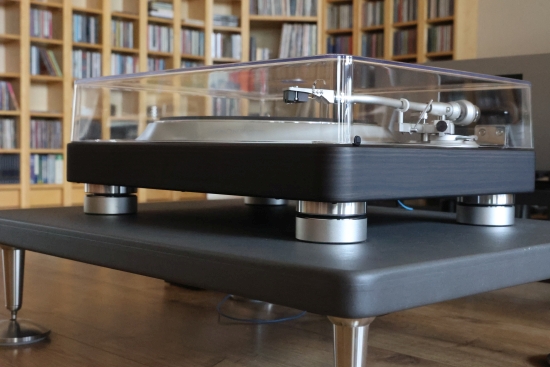

The Denon DP-3000NE impresses right from the moment you unpack it and set it up. Its solid build and beautiful seamless dark ebony natural wood veneer make many other turntables in this price range look rudimentary. Its arm has an unusual construction, aiming to use loose coupling to damp resonances rather than being as stiff as possible. This takes some getting used to, but as I found, it is very easy to obtain excellent results, certainly when using the DL-A110 or DL-103(R).
The Denon DP-3000NE does not behave like a magnifying glass on your music collection, rather, it is a music machine first and foremost. It allows the user to extract the essence of anything they play, be it hard electro, house, R&B, Jazz, Soul, or more traditional music, with minimal effort and present it in an always pleasant and engaging manner.
The DL-103 and DL-103R are almost as much a surprise to me as the DP-3000NE because they never fail to go right for the core of the music and present it with confidence and gusto, and on top, they manage to sound smooth and fluid, despite possessing “just” a conical stylus.
The Denon DP-3000NE and DL-103, DL-103R, or DL-A110 work beautifully synergistically to provide a big, upbeat, confident, well-saturated, dynamic, and always toe-tappingly rhythmic sound.
Denon Distributor for the NL/Belgium: Masimo
Manufacturer’s website: Denon
